Equipped with patented two-stage automatic tension control, advanced heat pump cooling, and precision five-axis CNC with servo motors, linear guide rails, and ball screws, this machine delivers unmatched stability and cutting accuracy

Machine Specs

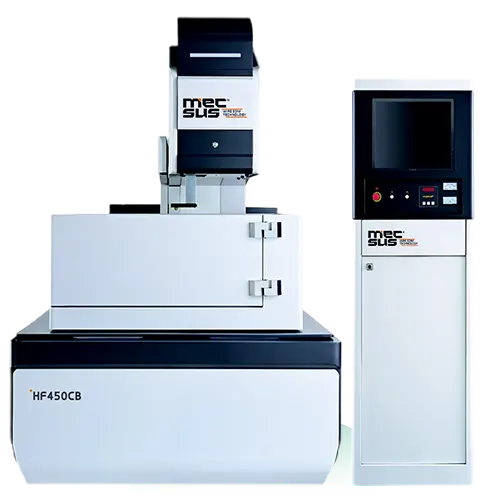

FEATURES	HF450CB
Worktable Size	950×640 mm
Worktable Stroke	450×320 mm
Maximum Cutting Thickness	350 mm
Max Taper Angle	±12°
Maximum Load Weight	400 kg
Net Weight	2100 kg
Machine Size	1760×1410×2030 mm
Cutting Accuracy	up to ±0.005
Roughness	Up to Ra 0.6μm
Maximum Cutting Speed	Up to 220 mm²/min
Wire Diameter	Standard 0.18 mm
Input Voltage	Three-Phase AC 380V 50Hz
Input Power	3.5 kW

FEATURES	HF500CB
Worktable Size	950×660 mm
Worktable Stroke	500×400 mm
Maximum Cutting Thickness	350 mm
Max Taper Angle	±12°
Maximum Load Weight	600 kg
Net Weight	2500 kg
Machine Size	1870×1480×2030 mm
Cutting Accuracy	up to ±0.005
Roughness	Up to Ra 0.6μm
Maximum Cutting Speed	Up to 220 mm²/min
Wire Diameter	Standard 0.18 mm
Input Voltage	Three-Phase AC 380V 50Hz
Input Power	3.5 kW
